Wakefield Thermal 30X12MM Wave-Solderable Low-Cost Heatsink - 287-1ABE
- SKU:
- 287-1ABE
- Description:
- WAVE-SOLDERABLE LOW-COST HEATSINK
- Part Number:
- 287-1ABE
- Type:
- Board Level, Vertical
- Height Off PCB:
- 1.180" (29.97mm)
- Width:
- 1.000" (25.40mm)
- Length:
- 0.500" (12.70mm)
- Material:
- Aluminum
- Material Finish:
- Black Anodized
- Attachment Method:
- Bolt On, Solderable Tab

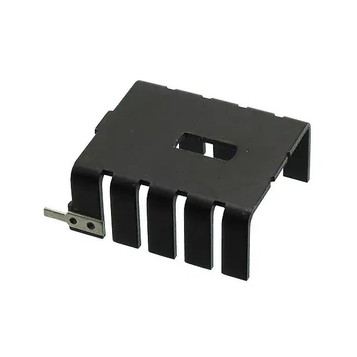

30mm by 12mm Series 287 Anodized Black Heatsink
As a cost-effective thermal solution, you can easily mount the 30mm by 12mm Series 287 Anodized Black Heatsink from Wakefield Thermal into pre-drilled PCB within the TO-220 or other semiconductor packages.
