BGA Heatsinks

BGA heat sinks are named as such because they are mounted to BGA devices, but are actually just simple extrusions. BGA heat sinks are usually crosscut to convert the extruded fins into pins which allow them to be used in more diverse applications. The number and size of the crosscuts are dependent upon the environment. Because BGA heat sinks are generally small, the attachment of the heat sink is a challenge. The heat sinks can be either attached to the device or to the PCB depending upon the application and the mechanical requirements.

Click here to download the BGA Heatsink Data Sheet


Using thermal tape or epoxy is a common method usually associated with low power devices and, while not the best thermal interface material, serves its purpose.

Pushpins are another common attachment method and require two small holes in the PCB. Because the holes are generally just outside the boundaries of the device, they can make chip routing difficult. The push pin, which can be made from plastic or metal, uses the energy of a small spring to provide enough force to keep the heat sink in place.

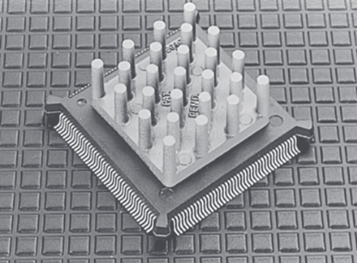

Heatsink close up

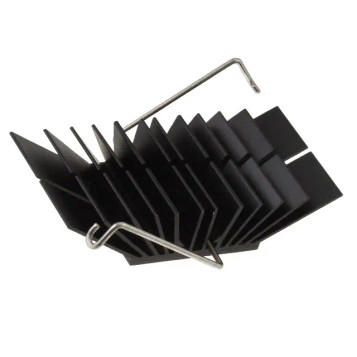

In cases where the pushpin's holes are not practical, anchors and wire clips can be used as an alternative. The anchors are either soldered to the PCB using two small holes per anchor or can be installed in a routed slot in the PCB. In the case of the slot, the anchor is installed from the back side of the PCB and is held in place buy the compression force in the anchor design. The advantage of the anchors is that their location is much more flexible and can be moved out of the way of traces in the PCB. A wire clip is a small diameter wire that is bent into various shapes that, when deformed, engages with the anchors and applies a force to the heat sink to hold it in place. The actual shape of the wire clips is dependent upon the location of the anchors, the heat sink design, and the amount of force required. Multiple wire clips can be used with a single heat sink in applications where a higher force is required. Wire clips are removable and allow the heat sink to be reused in the case of a reworked device.

Since the pushpins and wire clips are a mechanical attachment method, it opens up the type of interface material that can be used between the heat sink and the chip which can lead to better performance.
