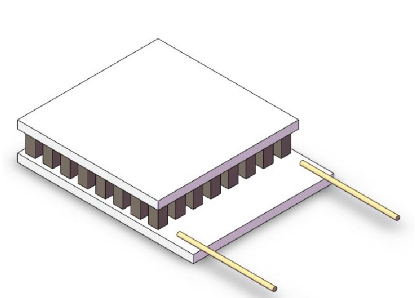

Wakefield Thermal 13X13X2.7MM 65 Couple Thermoelectric Cooler - TEC-13X13X2.7-65

SKU:

TEC-13X13X2.7-65

Series:

Thermoelectric Coolers

Width:

13

Length:

13

Thickness:

2.7

Number of Couples:

65

Finish:

None

I Max (A):

1.2

AT Max (C):

84

QC Max (W):

5.8

U Max (V):

8.48

ACR (ohm):

6.38

Top (mm):

12.1x13.2

Bottom (mm):

13.2x13.2

Height (mm):

2.66

Solder:

AuSn (Melting Point 280 C)

Substrate Material:

96% AL2O3

Therminal Contacts:

30AWG solid copper wires tinned with AuSn

Max Short-Time Processing Temperature:

220 C

Max Operating Temperature:

150 C

RoHS Compliant:

Yes

REACH Compliant:

Yes

Telcordia GR468 Compliant:

Yes

MIL-STD-883 Compliant:

Yes

Performance Characteristics Test Condition:

50 C in a vacuum
