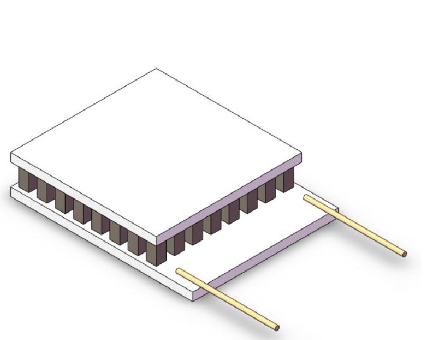

Wakefield Thermal 9X11X2.4MM 32 Couple Thermoelectric Cooler - TEC-9X11X2.4-32

SKU:

TEC-9X11X2.4-32

Series:

Thermoelectric Coolers

Width:

9

Length:

11

Thickness:

2.4

Number of Couples:

32

Finish:

None

I Max (A):

1.5

AT Max (C):

84

QC Max (W):

3.6

U Max (V):

4.13

ACR (ohm):

2.46

Top (mm):

8.8x8.8

Bottom (mm):

8.8x11

Height (mm):

2.36

Solder:

AuSn (Melting Point 280 C)

Substrate Material:

96% AL2O3

Therminal Contacts:

30AWG solid copper wires tinned with AuSn

Max Short-Time Processing Temperature:

220 C

Max Operating Temperature:

150 C

RoHS Compliant:

Yes

REACH Compliant:

Yes

Telcordia GR468 Compliant:

Yes

MIL-STD-883 Compliant:

Yes

Performance Characteristics Test Condition:

50 C in a vacuum
