Wakefield Thermal 29X29MM Elliptical Fin Clip Heatsink - 905-29-1-12-2-B-0

ask an expert
SKU:
905-29-1-12-2-B-0
Description:
HEAT SINK ELLIP FIN 29X29MM CLIP
Part Number:
905-29-1-12-2-B-0
Shape:
Square, Elliptical Fins
Length:
1.220" (30.99mm)
Width:
1.220" (30.99mm)
Height Off Base (Height of Fin):
0.457" (11.60mm)
Material:
-
Material Finish:
Black Anodized
Attachment Method:
Push Pin

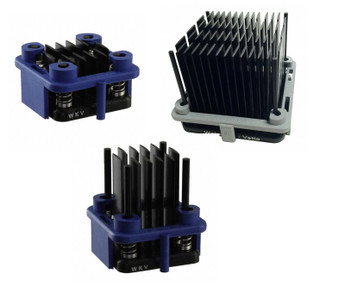

29mm by 29mm by 11.6mm Elliptical Fin Series 905 Heatsink

In forced convection applications, the 29mm by 29mm by 11.6mm Elliptical Fin Series 905 Heatsink from Wakefield Thermal is engineered to function with a thermal resistance of 4.09° C per Watts at 200 LFM.

PDF Name--Download Data Sheet
