Wakefield Thermal 37X37MM Elliptical Fin Clip Heatsink - 909-37-1-28-2-B-0
- SKU:
- 909-37-1-28-2-B-0
- Description:
- HEAT SINK ELLIP FIN 37X37MM CLIP
- Part Number:
- 909-37-1-28-2-B-0
- Shape:
- Square, Elliptical Fins
- Length:
- 1.457" (37.00mm)
- Width:
- 1.457" (37.00mm)
- Height Off Base (Height of Fin):
- 1.10" (28.00mm)
- Material:
- -
- Material Finish:
- Black Anodized
- Attachment Method:
- Push Pin
- Width Range:
- 0.5" - 2.99"
- Length Range:
- 0.5" - 2.99"
- Height Range:
- 0.5" - 2.99"

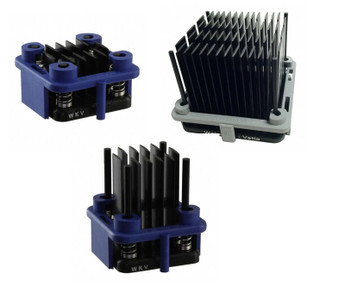

37mm by 37mm by 28mm Elliptical Fin Series 909 Heatsink
The 37mm by 37mm by 28mm Elliptical Fin Series 909 Heatsink from Wakefield Thermal is designed to work with a thermal resistance of 0.80° C/W at 600 LFM in forced convection applications.
--Download Data Sheet
